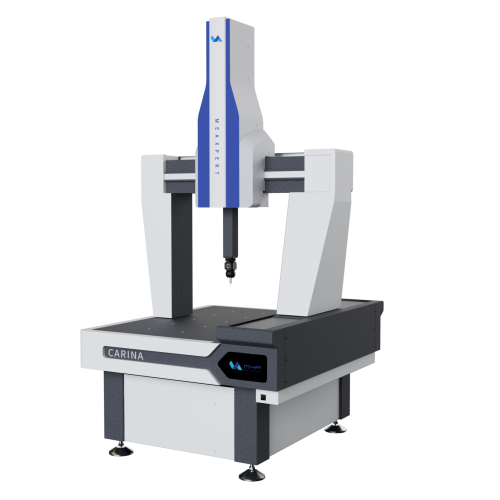

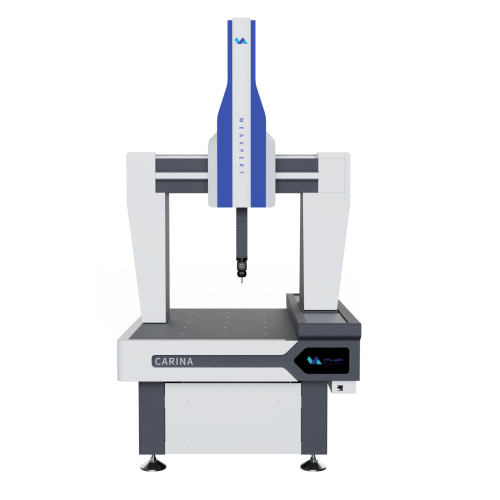

Top Coordinate measuring machine (CMM) Manufacturer
MXP’s coordinate measuring machines uses a high-stability granite platform, imported core components and a dual passive shock-absorbing design to ensure excellent accuracy and long-term stability. The innovative self-correcting transmission system and four-sided air-floating guide rails ensure smooth high-speed movement and meet complex measurement needs. The user-friendly 3D measurement software simplifies operation and delivers reliable results.
MXP is the top coordinate measuring machines (CMM) manufacturer, helping customers improve quality control, optimize efficiency and reduce costs with the most competitive prices and the best quality. Adhering to global standards, we focus on innovative technology and high-quality products to provide customers with an excellent measurement experience. We focus on providing high-precision and efficient measurement solutions for industries such as aerospace, automotive manufacturing, etc. To learn more about the performance and customized solutions of MXP CMM, please contact us now!

Technical Parameters of 3D Coordinate Measuring Machine
Specification | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Measuring range | Accuracy PH10M+TP20 | Accuracy PH10M+SP25 | Accuracy MH20i | Accuracy REVO RSP-2 | Overall Dimensions | Weight | Max part weight | ||||||
Xaxis | Yaxis | Zaxis | MPEe(um) | MPEp(um) | MPEe(um) | MPEp(um) | MPEe(um) | MPEp(um) | MPEe(um) | MPEp(um) | ||||
Carina 565 | 508 | 610 | 508 | 1.9+L/333 | 2.6 | 1.7+L/333 | 1.7 | 1.9+L/333 | 2.6 | 1.7+L/333 | 1.7 | 1235x1370x2450 | 1280 | 900 |
Carina 575 | 508 | 711 | 508 | 1235x1470x2450 | 1390 | 1000 | ||||||||
Carina 686 | 610 | 813 | 610 | 2.0+L/333 | 1.7+L/333 | 2.0+L/333 | 1.7+L/333 | 1325x1560x2680 | 1630 | 1120 | ||||
Carina 8106 | 810 | 1013 | 610 | 1535x1760x2680 | 2130 | 1200 | ||||||||
Carina 8126 | 810 | 1213 | 610 | 1535x1960x2680 | 2370 | 1250 | ||||||||
Carina 8156 | 810 | 1513 | 610 | 1535x2260x2680 | 2690 | 1300 | ||||||||
Carina 8206 | 810 | 2020 | 610 | 1535x2760x2680 | 3260 | 1500 |
Product Advantages
- Double passive damping design: effectively isolate low-frequency vibration, reduce the need for earthquake-proof foundation, and reduce costs.
- High-stability granite platform: overall processing without stress, low thermal deformation, rust and corrosion prevention, improve the accuracy of the whole machine.
- Self-correcting friction transmission system: “fixed + micro-suspension” structure ensures stable high-speed movement and safer collision protection.
- Imported core components: key components such as servo motors and air systems are imported to ensure long-term stability.
- Renishaw high-precision grating scale: resolution of 0.05µm, ensuring ultra-high measurement accuracy.
- Four-sided air-floating guide rail: multi-directional air pressure regulating valve + air bearing design, smoother movement, excellent thermal stability (gas consumption is only 150NL/Min).
Accessories

Renishaw UCC Controller

Various Renishaw Probes

Renishaw 0.5-0.1um Scale

MCUlite-2 Joystick

Next Generation CMM Software
MasterCMM is a new generation coordinates measuring machine software. It is with easy operation, even for the non-professional staffs it is easy to manage, the operation interface is simple, the intelligent system helps to shorten the learning process, increasing the working efficiency and saving the cost, only 3 steps of basic setting is required, it is powerful and flexible software for the CMM machines.
Learn More
SOFTWARE
Both software and hardware are even more powerful, with External-Array RationalVue composite measurement software, providing powerful 2D/3D composite measurement functions
