Keywords: Vision Measuring Machine (VMM), optical projection, CCD imaging, measurement error, precision control, geometric measurement, MXP, Unimetro
Abstract
Vision Measuring Machines (VMMs) integrate optical projection, photoelectric sensing, digital image processing, and precision mechanical motion into a high-accuracy geometric measurement system. Widely used in precision manufacturing, quality control, and product development, VMMs enable fast, non-contact inspection of complex parts.
Based on the technical characteristics of OGP-type systems, this article explains the system architecture, working principles, and core features of VMMs. It further analyzes six major error sources—grating system, mechanical motion, axis perpendicularity, optical axis deviation, environmental temperature, and illumination conditions—revealing how each factor affects measurement accuracy and how to control them effectively.
1. Introduction
With the rapid advancement of precision manufacturing and micro/nano-processing technologies, the demand for accurate dimensional and geometric inspection continues to grow. Traditional contact measurement methods face limitations in efficiency, flexibility, and micro-scale applications.
Non-contact optical measurement has emerged as the dominant solution due to its high speed, non-destructive nature, and automation capability. Vision Measuring Machines (VMMs), as a typical optical coordinate measurement system, use optical projection and CCD imaging to measure contours and surface features efficiently.
They are widely applied in industries such as:
- Precision machining
- Electronics manufacturing
- Mold and tooling
- Medical device production
However, real-world measurement accuracy is influenced by hardware design, environmental conditions, and operational practices. Understanding these factors is essential for improving measurement reliability and reducing uncertainty.
2. System Architecture of a Vision Measuring Machine
A modern VMM is a highly integrated system consisting of five core modules:
2.1 Mechanical System
Provides stable motion and positioning through:
- Precision granite base or working table
- Linear guideways
- Transmission mechanisms

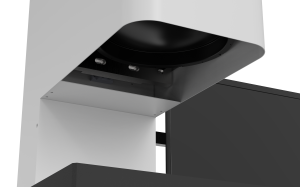

2.2 Optical System
Includes:
- Zoom lenses (typically 0.7×–4.5×)
- Illumination modules (bottom, surface, ring light)
- Optical path design
Ensures sharp and distortion-free imaging of the workpiece.
2.3 Image Acquisition System
- Based on CCD/CMOS sensors
- Converts optical images into digital signals
2.4 Computer Processing System
Handles:
- Image processing
- Coordinate calculation
- Data storage and output
2.5 Measurement Software
Provides advanced functions such as:
- Edge detection
- Geometric calculation
- Tolerance evaluation
- Automatic report generation
High-end systems (such as those under MXP and Unimetro) may also include Z-axis probing or laser sensors, enabling full 3D measurement capability.
3. Working Principle of VMM
The Vision Measuring Machine operates based on optical projection combined with digital image processing.
Measurement Workflow:
- Illumination (bottom light, coaxial light, or ring light) projects onto the workpiece
- The optical lens captures and projects the image onto the CCD sensor
- The CCD converts the image into digital data
- Software extracts edges and features
- Grating scales provide displacement data
- The system calculates dimensions, angles, and coordinates
Key Measurement Logic:
Focus → Point Acquisition → Calculation
Compared with traditional optical comparators:
- Manual alignment is eliminated
- Measurement becomes automated
- Accuracy and repeatability improve significantly
4. Technical Advantages of Vision Measuring Machines
4.1 Wide Measurement Range with Flexible Magnification
Supports both macro and micro measurements with zoom optics.
4.2 Multi-Mode Illumination
- Backlight (silhouette measurement)
- Surface light (reflective surfaces)
- Ring light (complex geometries)
4.3 Multi-Dimensional Measurement
- 2D geometric features
- 3D coordinates (with Z-axis module)
- GD&T evaluation
4.4 Non-Contact High Efficiency
- No mechanical stress on parts
- Ideal for fragile or deformable components
- Suitable for batch inspection and automation
5. Main Error Sources and Their Mechanisms
Measurement errors in VMM systems can be categorized into:
- Intrinsic hardware errors
- Environmental errors
- Operational errors
5.1 Grating Scale Error
The grating scale is the core reference for displacement measurement.
Errors originate from:
- Line pitch accuracy
- Interpolation errors
- Installation misalignment
👉 This defines the baseline accuracy limit of the machine.
5.2 Stage Motion Error
During X-Y movement, the stage may exhibit:
- Straightness deviation
- Angular errors
This causes coordinate deviation and affects measurement accuracy.
5.3 Axis Perpendicularity Error
If X and Y axes are not perfectly perpendicular:
- Rectangular measurements become distorted
- Angle and positional accuracy are compromised
5.4 Optical Axis Perpendicularity Error
If the optical axis is not perpendicular to the stage:
- Image distortion occurs
- Scaling and tilt errors appear
👉 This directly affects contour measurement accuracy.
5.5 Temperature-Induced Error
Thermal expansion differences between:
- Machine structure
- Workpiece
- Grating scale
lead to dimensional variation.
👉 Even small temperature changes can significantly impact high-precision measurements.
5.6 Illumination Condition Error
One of the most critical yet underestimated factors.
- Excessive brightness→ Image shrinkage
- Insufficient brightness→ Image expansion
This directly affects edge detection accuracy.
⚠️ Especially critical for:
- Diameter measurement
- Length/width measurement
- Non-repetitive geometries
For repetitive structures (e.g., grid plates), errors may cancel out under consistent conditions.
6. Error Control Strategies and Best Practices
To ensure high measurement accuracy, a systematic control strategy is required:
6.1 Hardware Optimization
- Use high-precision grating systems
- Ensure strict mechanical assembly
- Perform regular calibration
6.2 Environmental Control
- Maintain constant temperature (typically 20°C)
- Allow thermal stabilization of machine and workpiece
6.3 Standardized Illumination
- Use consistent lighting conditions
- Optimize light angle and intensity
- Prefer ring light for complex parts
6.4 Operator Standardization
- Follow consistent focusing procedures
- Use repeat measurements for validation
- Avoid manual intervention errors
7. Conclusion and Future Outlook
Vision Measuring Machines combine optical imaging, CCD sensing, and advanced software to deliver high-efficiency, non-contact precision measurement.
Key findings:
- Hardware errors (grating, motion, perpendicularity) are fixed and inherent
- Environmental and illumination errors are controllable
- Lighting conditions are a critical factor in high-precision measurement
Future Development Trends
- Intelligent adaptive lighting systems
- AI-based edge detection algorithms
- Multi-error compensation models
- Higher automation and smart inspection integration
These innovations will further enhance measurement accuracy and reliability, supporting the evolving needs of high-end manufacturing industries.
