Published by MEAXPERT | Cost‑Effective Precision Measurement Solutions
Introduction: In Battery Manufacturing, Measuring Dimensions Alone Is Not Enough
Driven by the rapid expansion of electric vehicles, energy storage systems, and next‑generation battery technologies, modern battery manufacturing is evolving toward complex geometric designs, ultra‑tight tolerances, and high‑consistency mass production. Battery cells, modules, packs, housings, covers, cooling structures, and key structural components are required not only to meet individual dimensional tolerances, but also to maintain consistent geometric relationships within defined tolerances throughout the assembly workflow.
Traditional dimensional inspection remains essential for battery quality control, but isolated single‑point tolerance checks may not provide a complete understanding of complex geometric deviations in modern battery components. For critical parts such as battery housings, simple external dimension verification overlooks subtle geometric variations that can influence assembly fit and long‑term product performance.
Battery quality engineers must address core geometric inspection challenges that conventional single‑point testing cannot fully resolve:
- What overall geometric deviations exist between manufactured parts and their original CAD designs?
- Can minor shape distortions impact cell stacking accuracy and module installation consistency?
- Are mounting surfaces, datum features, and locating holes positioned correctly for downstream assembly processes?
- Can warpage, local deformation, or material springback affect battery sealing performance and structural stability?
- Can accumulated minor geometric variations compound to create assembly‑level inconsistencies?
In modern battery manufacturing, dimensional inspection is only one layer of quality verification. A more complete approach connects dimensional accuracy with geometric form, feature relationships, and assembly interfaces.
This is where 3D measurement and precision geometric inspection become increasingly important. By integrating CMMs, optical measurement systems, 3D scanning technologies, and professional inspection software, manufacturers can evaluate battery components from overall geometry to individual functional features and assembly relationships, supporting comprehensive, data‑driven quality assessment.
From Dimensional Checks to Comprehensive 3D Geometric Inspection
In this context, 3D measurement refers not to a single measurement technology, but to a range of contact and non‑contact methods used to capture and evaluate three‑dimensional component geometry. Comprehensive battery component inspection starts with high-quality 3D data acquisition. Unlike discrete single‑point measurement, 3D measurement captures spatial geometric data from relevant surfaces and features to characterize the actual manufactured condition of parts, laying a solid foundation for accurate deviation analysis.
Depending on component size, geometric complexity, tolerance requirements, and production environment, battery manufacturers may leverage a range of precision measurement technologies:
- Coordinate Measuring Machines (CMMs): Ideal for precision verification of datum features, hole positions, and assembly‑critical geometric relationships
- Vision Measuring Machines (VMMs): Suitable for high‑efficiency inspection of small features, profiles, and fine dimensional characteristics
- Portable measuring systems: Enable flexible on‑site inspection for large battery packs and structural frames
- 3D scanning technologies: Capture comprehensive surface data for complex thin‑wall structures and curved profiles
- Automated in‑line inspection systems: Support continuous batch inspection for high‑volume production lines
Accurate data acquisition is only the first step in geometric validation. Measurement alignment strategy has a direct impact on inspection accuracy and result credibility. Improper alignment can create false non‑conformities for qualified parts or mask subtle manufacturing variations, leading to inaccurate quality reports and unaddressed process inconsistencies.

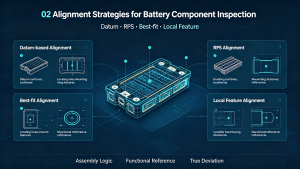

Alignment Strategies for Battery Component Inspection
Battery housings and structural components vary significantly in geometry, datum systems, and assembly requirements, making a single alignment strategy unsuitable for every inspection objective. Depending on the inspection objective and real‑world assembly logic, engineers may apply four common alignment strategies for battery component validation:
- Datum‑based alignment: Strictly follows the engineering drawing datum scheme to establish the theoretical reference for inspection
- RPS alignment: Locates parts using defined locating surfaces, mounting holes, and assembly features to reflect the reference conditions used in the assembly process
- Best‑fit alignment: Minimizes the overall deviation between measured data and the nominal model for global shape analysis
- Local feature alignment: Targets key functional regions to verify application‑specific assembly performance
The appropriate alignment should be determined by the inspection objective, datum reference system, and functional requirements of the component—not simply by the alignment method that produces the lowest overall deviation.
For example, battery housings typically adopt composite positioning via mounting surfaces and locating holes during assembly. Prioritizing functional reference alignment over generic global best‑fit alignment allows engineers to effectively distinguish fixture positioning variation, overall part deformation, local geometric deviations, and assembly‑impacting functional deviations, enabling targeted process and quality optimization.
Visual Deviation Detection: 3D CAD Comparison Exposes Geometric Variations
Most battery housings feature thin‑wall aluminum structures with stamped surfaces, welding seams, sealing grooves, and multi‑functional mounting flanges. These components can develop geometric deviations during stamping, forming, welding, machining, heat treatment, and assembly processes, as well as from material springback after forming operations.
Traditional dimensional inspection excels at discrete tolerance verification but cannot fully characterize overall deformation trends and localized geometric variations. In contrast, 3D CAD model comparison combines measured data—including probing points, functional features, point clouds, and meshes—with the nominal CAD model, generating intuitive deviation color maps to visualize positive and negative geometric variations across the entire component.
A deviation color map provides a visual representation of geometric variation, but it should not be treated as a substitute for feature‑based tolerance evaluation. The measured deviation still needs to be interpreted against the applicable datum system, tolerance zones, and functional requirements.
This visual inspection approach enables engineers to identify common geometric variations that are difficult to detect through single‑point measurement:
- Global warpage, local bulging, and surface sinking on thin‑wall housing structures
- Material springback and localized stretching on stamped and formed surfaces
- Edge profile deviation and surface distortion on sealing grooves
- Concentrated deformation on mounting flanges and corner regions
Engineers can analyze deviation distribution patterns, assess whether variations concentrate on critical sealing and mounting surfaces, and evaluate how overall part distortion influences hole position accuracy and assembly clearance. This granular geometric data supports systematic quality troubleshooting and process tuning.

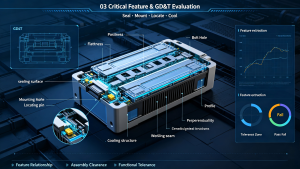

Individual Evaluation of Critical Functional Features Ensures Assembly Reliability
Full‑surface deviation analysis effectively reflects overall part geometric consistency, but functional performance ultimately depends on the precision of critical component features. Battery housings and structural assemblies integrate high‑precision functional elements including datum surfaces, sealing interfaces, mounting flanges, locating holes, bolt holes, electrical connection features, and cooling structures—all of which require independent extraction and targeted geometric evaluation.
Modern 3D measurement solutions support comprehensive geometric parameter verification for all critical features, covering diameter, distance, flatness, profile, perpendicularity, parallelism, positional accuracy, and angular orientation, according to engineering drawing specifications and applicable GD&T requirements.
For assembly‑critical features, the relationship between features can be more important than the size of an individual feature. Hole diameter, for example, may be within tolerance while the hole position, axis orientation, or relationship to the datum system is outside the specified requirement.
Typical Feature Inspection Cases
- Sealing Surface Inspection:
Sealing performance is critical to battery dustproof, waterproof, and insulation reliability. Flatness errors, profile deviations, local step differences, or warpage may affect the contact condition between mating components and should therefore be evaluated according to the sealing design and tolerance requirements. 3D inspection quantifies local geometric variations on sealing surfaces to help engineers assess potential impacts on sealing consistency. - Mounting & Locating Hole Inspection:
A hole that meets its diameter tolerance does not necessarily guarantee assembly compatibility. Offset positional tolerance, tilted axis orientation, and inconsistent hole spacing can lead to module misalignment and assembly interference. Independent feature evaluation verifies the geometric consistency of hole features relative to defined datum systems, mitigating assembly risks caused by feature relationship variations.

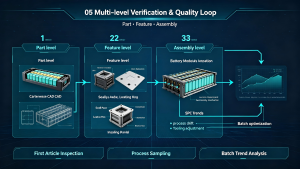

Multi‑Level Verification: From Single Part to Complete Assembly
Battery manufacturing quality control is a systematic process. Localized geometric deviations on individual components can accumulate and propagate through downstream assembly stages. For this reason, comprehensive 3D inspection covers three core verification levels, each answering distinct quality‑related questions:
- Part Level
Does the overall component match the nominal geometry? - Feature Level
Do critical features meet their specified dimensional and GD&T requirements? - Assembly Level
Do the inspected components maintain the required geometric relationships when assembled?
These three levels answer different quality questions and should be evaluated together rather than treated as independent inspection tasks.
By cross‑analyzing 3D measurement data, CAD nominal models, and engineering tolerance requirements, manufacturers can accurately characterize actual manufactured component conditions, identify potential assembly risks, and support more consistent quality control in mass production.
Why GD&T Matters in Battery Component Inspection
Traditional dimensional inspection often focuses on individual size characteristics and may not fully describe complex relationships between functional features. Many common battery assembly issues stem not from out‑of‑spec component sizes, but from inconsistent geometric form, orientation, or feature positioning.
For instance, a mounting hole may have a qualified diameter but incorrect positional tolerance; a housing may meet overall dimensional requirements but exhibit excessive sealing surface warpage; two independent mounting surfaces may pass individual tolerance checks but lack required parallelism. GD&T (Geometric Dimensioning and Tolerancing) provides a structured framework for evaluating not only feature size, but also form, orientation, location, and relationships between functional features. This enables engineers to assess geometric conformity based on real assembly and functional requirements, rather than isolated dimensional pass/fail results.
3D Measurement Across the Battery Manufacturing Process
3D precision measurement technologies support quality validation across the full battery manufacturing workflow, extending beyond prototype testing and final finished‑part inspection to cover process‑level quality monitoring:
- First Article Inspection: Verify that representative first‑off parts meet design and inspection requirements before regular production runs
- Process Sampling Inspection: Monitor production stability and identify developing process trends through periodic batch sampling
- Fixture & Tooling Verification: Calibrate positioning accuracy of assembly fixtures and production tooling to ensure consistent component locating references
- Defective Part Reinspection: Analyze non‑conforming components to locate geometric deviation sources and support root‑cause analysis
- Batch Trend Analysis: Summarize recurring deformation patterns and process drift to guide continuous production optimization
Long‑term measurement data accumulation enables manufacturers to distinguish random manufacturing variation from systematic process errors, providing actionable data for tooling adjustment, forming process optimization, welding parameter calibration, and machining precision improvement, steadily enhancing production yield and consistency.
Standardized Measurement Programs Boost Batch Inspection Consistency
High-volume battery production demands both high measurement accuracy and consistent inspection results. Manual inspection workflows are prone to operational variability and inconsistent evaluation criteria. Standardized measurement programs deliver unified, automated inspection workflows including standardized alignment strategies, automatic feature measurement, CAD comparison, GD&T evaluation, and automated report generation.
For mass‑produced battery housings, structural frames, and mounting components, reusable inspection routines reduce repeated setup work, improve overall inspection efficiency, and maintain consistent quality evaluation standards across production batches, balancing high precision and scalable production efficiency.
CMMs for Precision Inspection of Critical Battery Components
CMMs are particularly well suited to inspection tasks where dimensional accuracy, datum references, feature relationships, and geometric tolerances must be evaluated with high measurement consistency. They can complement optical and scanning technologies by providing controlled, feature‑based verification for assembly‑critical characteristics. For battery housings and structural components, CMMs can verify critical hole positions, mounting surfaces, datum features, and other assembly‑related characteristics within defined coordinate and tolerance frameworks.
Depending on component size, tolerance requirements, feature complexity, and production volume, the appropriate CMM configuration can be selected to balance measurement capability, inspection efficiency, and investment cost.
MEAXPERT provides customized CMM configuration solutions tailored to component size, tolerance levels, feature complexity, production volume, and on‑site inspection environments, helping manufacturers balance inspection accuracy, operational efficiency, and investment cost to build practical, cost‑effective precision measurement workflows.
Conclusion: Upgrade Battery Quality Control with In‑Depth Geometric Insight
As battery manufacturing advances toward higher precision, more complex structural designs, and stricter production consistency standards, traditional isolated dimensional inspection may not be sufficient to fully characterize geometric quality. Modern battery quality control relies on a closed‑loop understanding of actual geometry → functional features → assembly performance.
3D measurement technology overcomes the limitations of conventional single‑point inspection, enabling comprehensive, multi‑level geometric deviation detection covering battery housing profiles, critical functional features, and inter‑component assembly relationships. Combined with CAD model comparison and standardized GD&T evaluation, these technologies help manufacturers identify potential quality risks early, locate process variation sources, and implement targeted production optimization.
The value of 3D measurement therefore extends beyond determining whether a component passes or fails inspection. Reliable geometric data provides manufacturers with a basis for understanding process variation, evaluating assembly conditions, and making informed decisions about tooling, forming, welding, machining, and quality control.
MEAXPERT provides practical precision measurement solutions for manufacturers seeking reliable dimensional and geometric inspection across modern production environments. From battery components and automotive parts to precision‑machined components and complex industrial assemblies, MEAXPERT helps manufacturers improve measurement efficiency, verify critical geometric requirements, and build more consistent quality control processes to support stable, high‑quality manufacturing output.
