Features
- 220V open-loop servo motor, 220V closed-loop servo motor is optional.
- It is an integrated controller, which can be connected to the probes lifting lights, external communication equipment (fixed barcode scanners manipulators), and can be connected to twelve axes of motion control.
- A full range of customized silent screws, which are quieter and more precise than ball screws;
- The z-axis can adjust the verticality, with a higher vertical and linear precision;
- The z-axis is a flat and wide guide rail with better torsion resistance resistance.
- The linear precision of a small range is high
- 20 million pixel digital camera
- Square steel column, with higher bearing capacity, smaller deformation, and safer transportation.

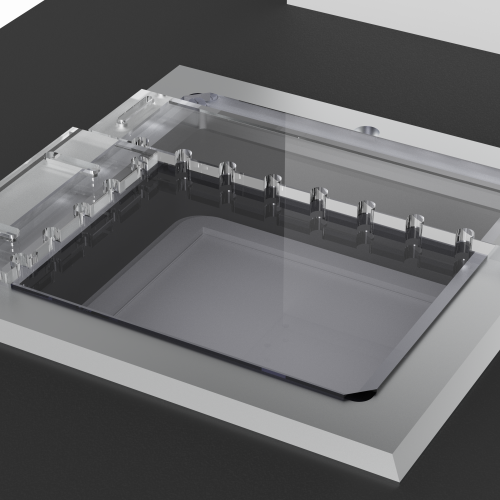

- Hard-anodized workbench with anti-scratch and anti-oxidation function.
- Fully programmable 8-section LED surface illumination.
PARAMETERS

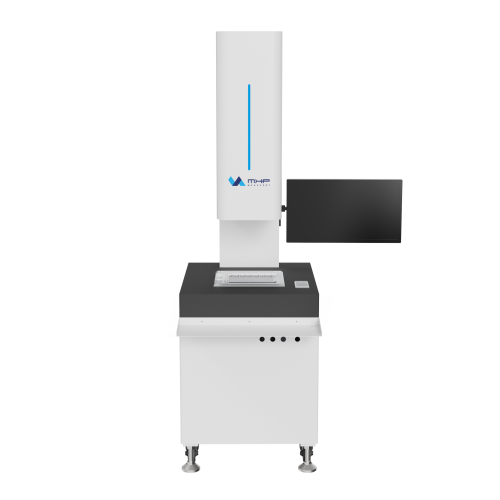

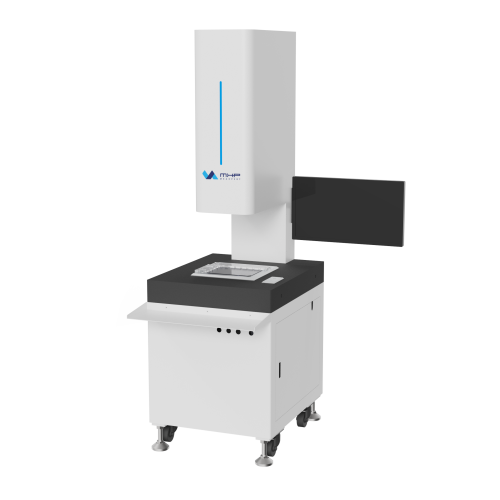

| Item | Mars190 |
| Measure the stroke X*Y*Z (mm) | X:192,Y:129, Z-axis lift 100mm |
| Dimensions X*Y*Z (mm) | 600*920*1880 |
| Weight (kg) | 190 |
| Machine movement mode | Full-automatic |
| Optical lens configuration | Dual telecentric single-field optical lens |
| Field of view (mm) | 192*129 |
| Image Sensor | 20 million pixel digital camera |
| Surface light source | Fixed LED ring light/lifting LED ring light |
| Contour light source | LED planar light source /LED parallel light source |
| Software | FlashPro ultra-high-speed inspection vision software |
Software Solutions
Our offerings include not only the Standard VMM and Multipurpose Measurement devices but also corresponding software solutions. This software is designed to enhance measurement accuracy and efficiency, with user-friendly operation and strong compatibility to meet a wide range of complex measurement needs. Whether you’re a seasoned professional or a beginner, our software provides comprehensive support to help you work more effectively.
Learn More
VueVista Software
VueVista software enables precision measurement via image processing, motion control, and CAD support. It offers auto focus, pixel calibration, element measurement, tolerance checking, and data export for quality assurance.
ACCESSORIES
Programmable LED Light
HD CCD Camera
Linear scale with high resolution
Auto zoom lens
