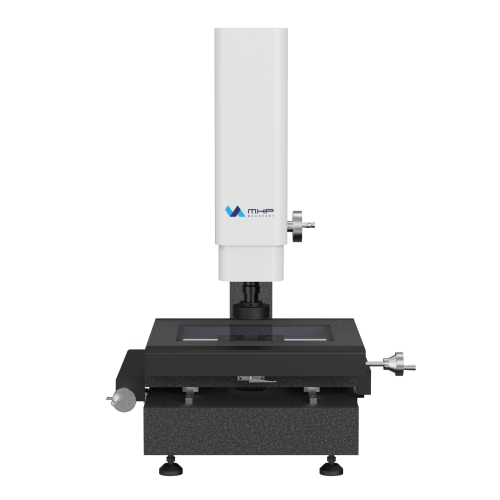

2D Manual Vision Measuring Machine – VMM – PLUTO Series

FEATURES

Industrial-grade color CCD camera
Marble column, with exceptional rigidity, anti-deformation, and temperature resistance.
Deformation, and safer transportation.
Hard-anodized workbench with anti-scratch and anti-oxidation function.

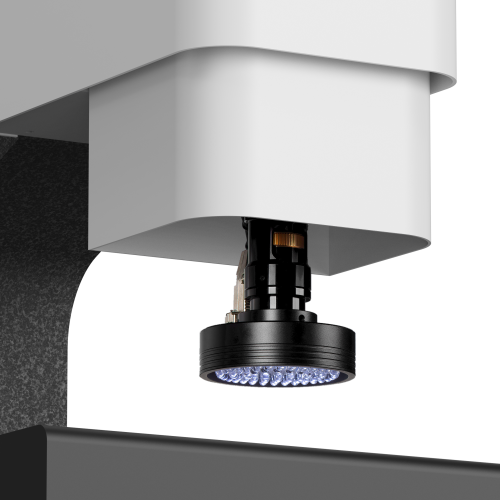

Fully programmable 8-section LED surface illumination.

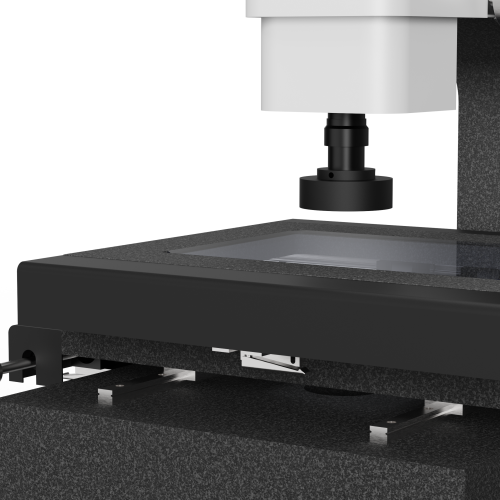

High-accuracy linear guide way ensures exceptional dynamic performance.
3-axis 0.0005mm high-resolution linear transducers enhance precision.
Powerful programmable software supports advanced measurement functions.
Integrated 2D and 3D measurement with optical lens and touch probe.
Software calculates offset, unifying results in one coordinate system.
Measuring results can be exported as 3D drawings for reverse engineering.
3-axis manual control with user-friendly software for quick operation.
Compact design, ideal for factories manufacturing precise parts. Suitable for small quantity sample measurement applications.

Get A Quote Now

Description

PARAMETERS

Item		PL-2	PL-3	PL-4
Dimension (mm) (L/W/H)		540/540/860	665/670/915	724/855/915
Measuring range (mm) (X/Y/Z)		200/100/150	300/200/200	400/300/200
Weight (kg)		150	200	255
lmage and Measuring	CCD	Industrial-grade color CCD camera
	Lens	Manual zoom objective 0.7–4.5X (electronic magnification feedback lens available as an option)
	Magnification	18-195X (Magnification varies depending on the selected camera model; actual magnification is subject to measured data)
	Field of view	8.5~1.3 mm
	Working distance (mm)	80
Linear scale resolution (um)		0.5
Driving system		X/Y/Z axis manual control
Illumination		Programmable LED 8 section ring surface light, LED bottom parallel light

VueVista Software

VueVista software enables precision measurement via image processing, motion control, and CAD support. It offers auto focus, pixel calibration, element measurement, tolerance checking, and data export for quality assurance.
