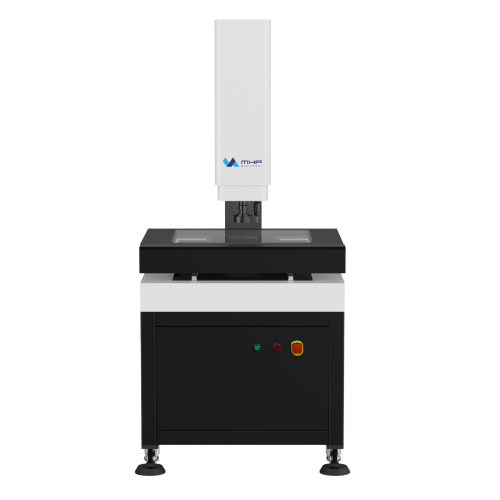

Features
- 220V open-loop servo motor, 220V closed-loop servo motor is optional.
- It is an integrated controller, which can be connected to the probes lifting lights, external communication equipment (fixed barcode scanners manipulators), and can be connected to twelve axes of motion control.
- A full range of customized silent screws, which are quieter and more precise than ball screws;
- The z-axis can adjust the verticality, with a higher vertical and linear precision;
- The z-axis is a flat and wide guide rail with better torsion resistance resistance.
- The linear precision of a small range is high
- 1.3 million digital cameras
- Square steel column, with higher bearing capacity, smaller deformation, and safer transportation.

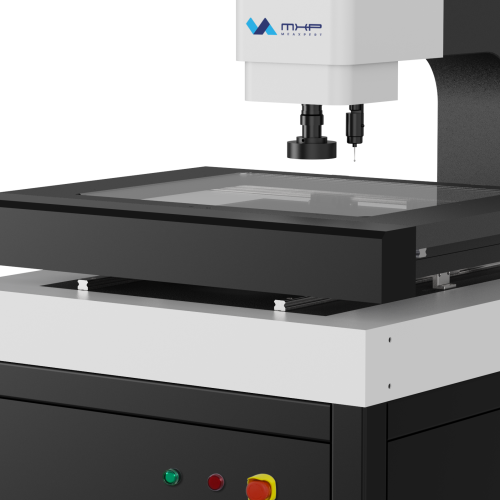

- Hard-anodized workbench with anti-scratch and anti-oxidation function
- Fully programmable 8-section LED surface illumination
PARAMETERS
|
Item |
ME-3 | ME-4 | ME-5 | ME-6 | |
|
Dimension (mm) (XxYxZ |
650/950/1740 |
730/1040/1740 |
790/1130/1760 |
890/1370/1780 |
|
|
Measuring range (mm) (X/Y/Z) |
300/200/200 |
400/300/200 |
500/400/200 |
600/500/200 |
|
|
Weight (kg) |
400 |
500 |
600 |
700 |
|
|
lmage and Measuring |
CCD |
Industrial-grade color CCD camera |
|||
|
Lens |
Automatic zoom lens 1-10X |
||||
|
Magnification |
18-195X (The magnification varies depending on the different models of the selected camera; the actual magnification is subject to the measured data.) |
||||
|
Field of view |
8.1~1.3 mm |
||||
|
Working distance (mm) |
80 |
||||
|
Linear scale resolution (um) |
0.5um (0.1um optional) |
||||
|
Driving system |
CNC control, high-precision servo motor drive; Handle control, mouse/keyboard control |
||||
|
Illumination |
Programmable LED eight-zone annular surface light, LED bottom parallel light (optional: eight-zone annular light, coaxial light ) |
||||
Software Solutions
Our offerings include not only the Standard VMM and Multipurpose Measurement devices but also corresponding software solutions. This software is designed to enhance measurement accuracy and efficiency, with user-friendly operation and strong compatibility to meet a wide range of complex measurement needs. Whether you’re a seasoned professional or a beginner, our software provides comprehensive support to help you work more effectively.
Learn More
VueVista Software
VueVista software enables precision measurement via image processing, motion control, and CAD support. It offers auto focus, pixel calibration, element measurement, tolerance checking, and data export for quality assurance.
ACCESSORIES
Programmable LED Light
HD CCD Camera
Linear scale with high resolution

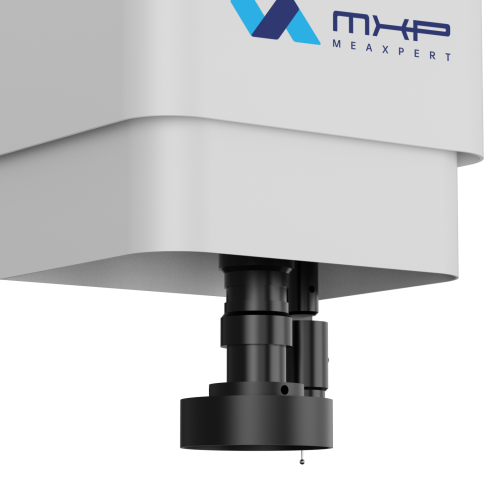

Auto zoom lens
